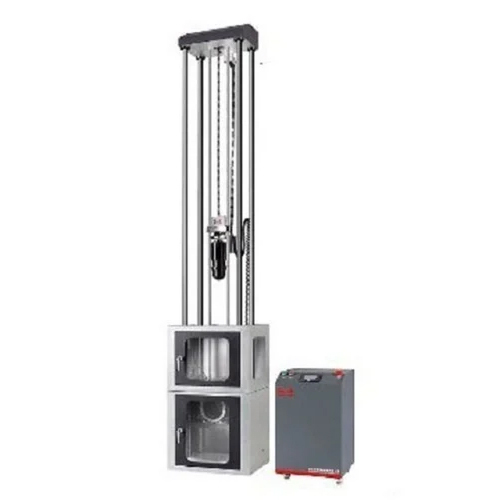

Drop Weight Impact Tester

Name: Drop Weight Impact Tester
Brand: GLOBE TEX INDUSTRIES
Price: 650000.0 INR
Availability: InStock

Price 650000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Drop Weight Impact Tester Specification

Response Time
Instantaneous

Usage
Industrial

Equipment Type
Drop Weight Impact Tester

Measuring Range
2 J - 50 J

Application
Impact resistance testing of plastics, films, and sheets

Automation Grade
Semi-automatic

Material
Mild Steel

Temperature
10C to 40C

Operating Voltage
220V AC

Accuracy
1%

Interface Type
Manual

Display Type
Analog/Digital

Number of Specimens
Single per test

Test Range
2 J - 50 J

Power Supply
220V AC, 50 Hz

Color
Silver

Frequency
50 Hz

Features
Height adjustable, sturdy design, interchangeable weights

Resolution
0.1 J

Port Size
Standard

Max Height
2 m

Specimen Size
Up to 300 mm x 300 mm

Humidity
Up to 85% RH

Mounting Type
Floor Standing

Voltage
220-440 Volt (v)

Capacity
Adjustable (by weights up to 50 kg)

Machine Weight
Approx. 70 kg

Test Speed
Variable (adjustable by drop height)

Test Width
Up to 300 mm

Test Stroke
Max 2 m

Control Mode
Manual & Semi-Automatic

Structure Material
Mild steel with powder coating

Impact Anvil
Hardened steel

Clamping Mechanism
Adjustable/manual clamp

Operator Level
Basic training required

Weight Adjustment Method
By attaching/detaching weights

Dimensions
Approx. 1200 x 500 x 2000 mm

Drop Weight Type
Interchangeable cylindrical weights

Compliance
Meets ASTM and ISO impact testing standards

Finish
Chemical and corrosion resistant

Safety Features
Protective shield and drop release lock

Calibration
Included, traceable to NABL certified lab

Packaging
Wooden Case

Accessories Included
Set of weights, sample holders, operation manual

Drop Weight Impact Tester Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
10 Pieces Per Month

Delivery Time
7-10 Days

Main Domestic Market
All India

About Drop Weight Impact Tester

We are betrothed in providing a wide arrangement of Automatic Impact Testers. They are used to increase the depth of tests to improve software quality. Apart from these, provided testers are to reduce the number of bugs that make it into production. Automatic Impact Testers are aid to improve the accuracy and prevent time-consuming fixes down the line. These testers are built in a simple construction and give a proper safeguard for protection. They are for suitable for research centre and other forging company. These impact testers have a rigid machine frame to enable a minimum energy absorption.

Robust Construction & Flexible Testing

Built with sturdy mild steel and powder coating, this tester resists chemicals and corrosion, ensuring durability even in demanding industrial environments. The interchangeable weights and adjustable clamp allow versatile setup for various specimen sizes and testing needs. The device accommodates samples up to 300 x 300 mm and delivers impact energies from 2 to 50 Joules, ideal for a range of material types.

Precision, Safety, and Compliance

Equipped with a hardened steel impact anvil and a protective shield with drop release lock, the tester puts safety first. It meets ASTM and ISO impact testing standards and arrives calibrated with certification traceable to an NABL-accredited lab. The user-friendly manual and semi-automatic interface ensures consistent, accurate measurements, displayed instantly in analog or digital format.

FAQ's of Drop Weight Impact Tester:

Q: How does the Drop Weight Impact Tester adjust its test energy for different samples?

A: The test energy is adjustable by attaching or detaching interchangeable cylindrical weights, allowing impact energies between 2 and 50 Joules. This enables tailored testing for a variety of material strengths and application needs.

Q: What is the process for conducting an impact test using this equipment?

A: First, set up the specimen using the adjustable clamp and sample holder. Select the required weight, adjust the drop height, then release the weight via the drop mechanism. The energy absorbed by the specimen is instantly displayed, allowing for accurate assessment of impact resistance.

Q: When does the equipment require calibration, and what standards does it follow?

A: The equipment comes pre-calibrated, with calibration traceable to NABL-certified labs. It is recommended to recalibrate periodically, especially before critical testing. The tester meets ASTM and ISO impact testing standards, ensuring reliable and standardized results.

Q: Where can this Drop Weight Impact Tester be effectively used?

A: This tester is suited for industrial and laboratory environments, including research facilities, quality assurance labs, and manufacturing plants where testing the impact resistance of plastics, films, and sheets is essential.

Q: What are the key safety features included in the tester?

A: Safety is enhanced by a protective shield that guards against flying fragments and a drop release lock to ensure controlled operation, minimizing accidental releases during testing sessions.

Q: What accessories and support materials come with the product?

A: The tester is supplied with a complete set of interchangeable weights, sample holders, a detailed operation manual, and is packaged securely in a wooden case for transport and storage.

Q: What are the main benefits of using this impact tester in a quality control setting?

A: The device provides precise, consistent impact resistance measurements with high accuracy (1% and 0.1 J resolution), supports variable test conditions, and offers traceable calibration and robust safety features, making it highly reliable for quality control and standard compliance.
