Dyeing And Processing Machines

Rota Dyer

50 Hz Infrared Ray Sample Dyeing Machine

Infra Colour Beaker Dyeing Machines

We are engaged in presenting a broad array of Infra Colour Beaker Dyeing Machines. They are designed in table top model and operate in a trouble free performance. These machines are an ideal laboratory dyeing machine using Infra Red Rays as heating source. Infra Colour Beaker Dyeing Machines are to achieve the desired results due to its easy operation and long service life. Provided machines are suitable for dyeing of woven fabrics. They are to produce accurate laboratory sample dyeings with level results. These machines are used in various textile industries.

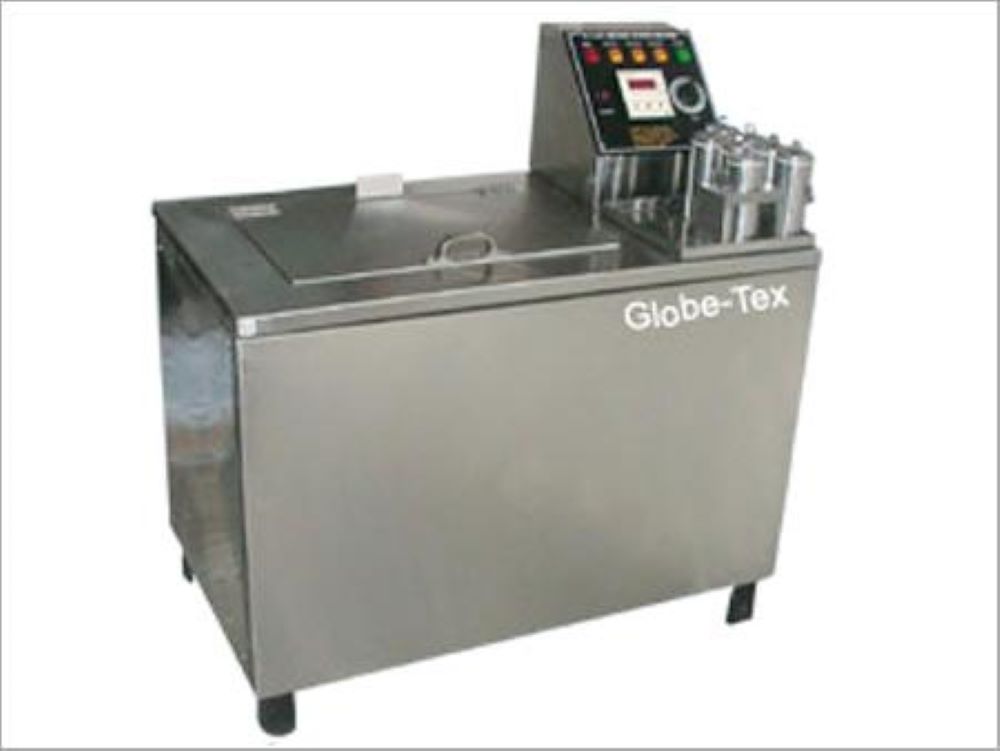

Beaker Dyeing Machines

Specifications for a beaker dyeing machine vary depending on the model, automation level (semi-automatic vs. automatic), and heating method (High-Temperature High-Pressure [HTHP], Infrared [IR], or atmospheric). High-Temperature High-Pressure (HTHP) beaker dyeing machines These are used for synthetic fibers like polyester and feature sealed, pressurized beakers. Specification Details Material Stainless steel, with SS 304 for the machine body and SS 316 for the beakers. Capacity Available in various configurations, such as 12 beakers of 250 ml or 6 beakers of 550 ml. Maximum Operating Temperature Up to 135“140C, allowing for high-temperature dyeing. Maximum Operating Pressure Up to 6.0 Kg/cm², to prevent beakers from boiling and ensure pressure stability. Heating Medium Glycerine bath, which heats the beakers indirectly to ensure consistent temperatures. Heating Rate Typically between 1.5C/min and 3.5C/min. Cooling Automatic or manual cooling systems are available. An automatic cooling system might involve a separate water pump connection. Agitation Reversible rotation of the beaker carriage, with a speed of approximately 20“23 RPM. Control Controlled by a microprocessor-based programmer for automatic time and temperature regulation. Electrical Supply Single or three-phase power, depending on the model and heater rating. Heating Load Varies by capacity, often ranging from 3 kW to 6 kW.
